510-73 Automatic sieve HMK-200 Air Jet Sieve

510-73 Automatic sieve HMK-200 Air Jet Sieve

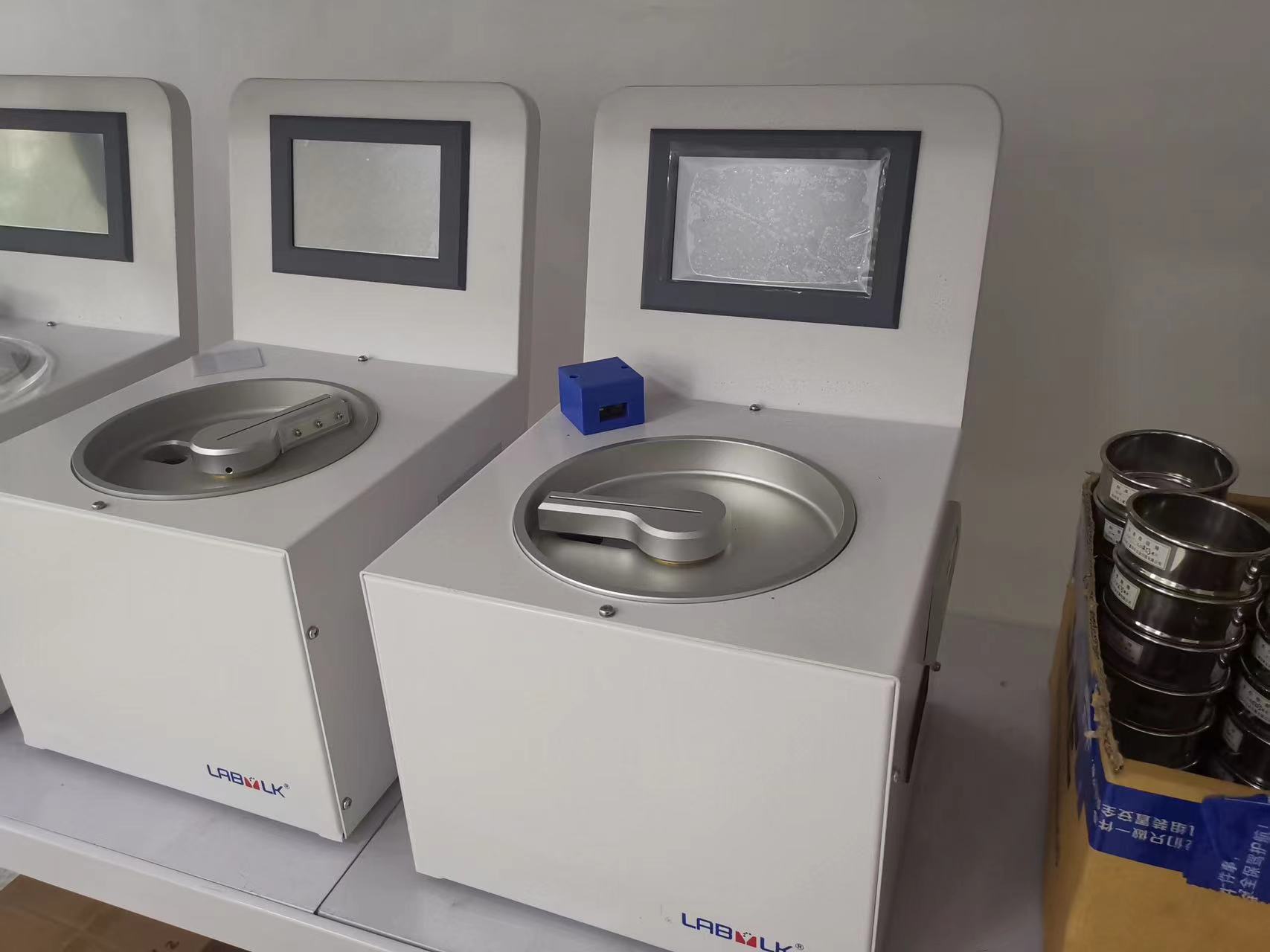

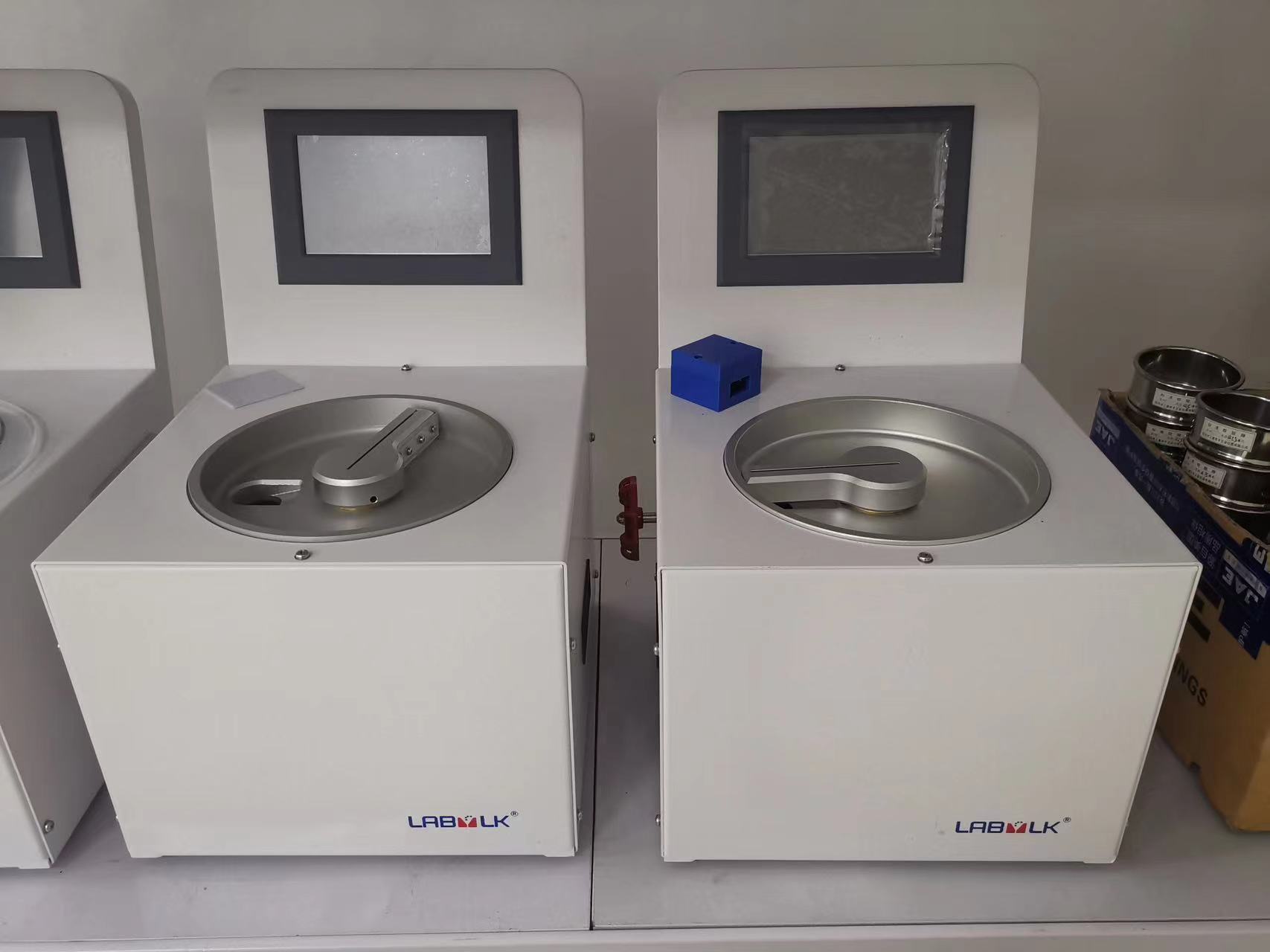

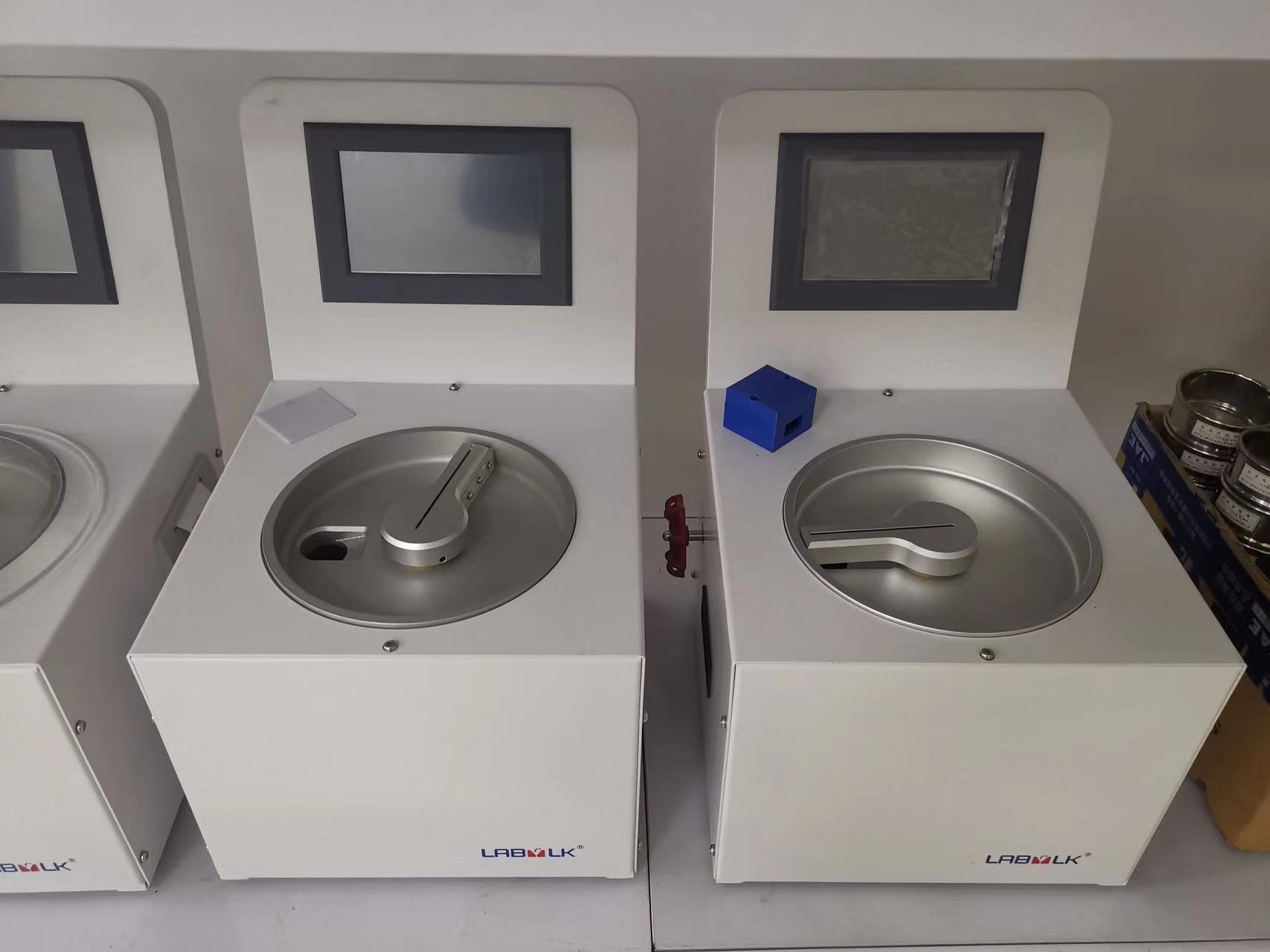

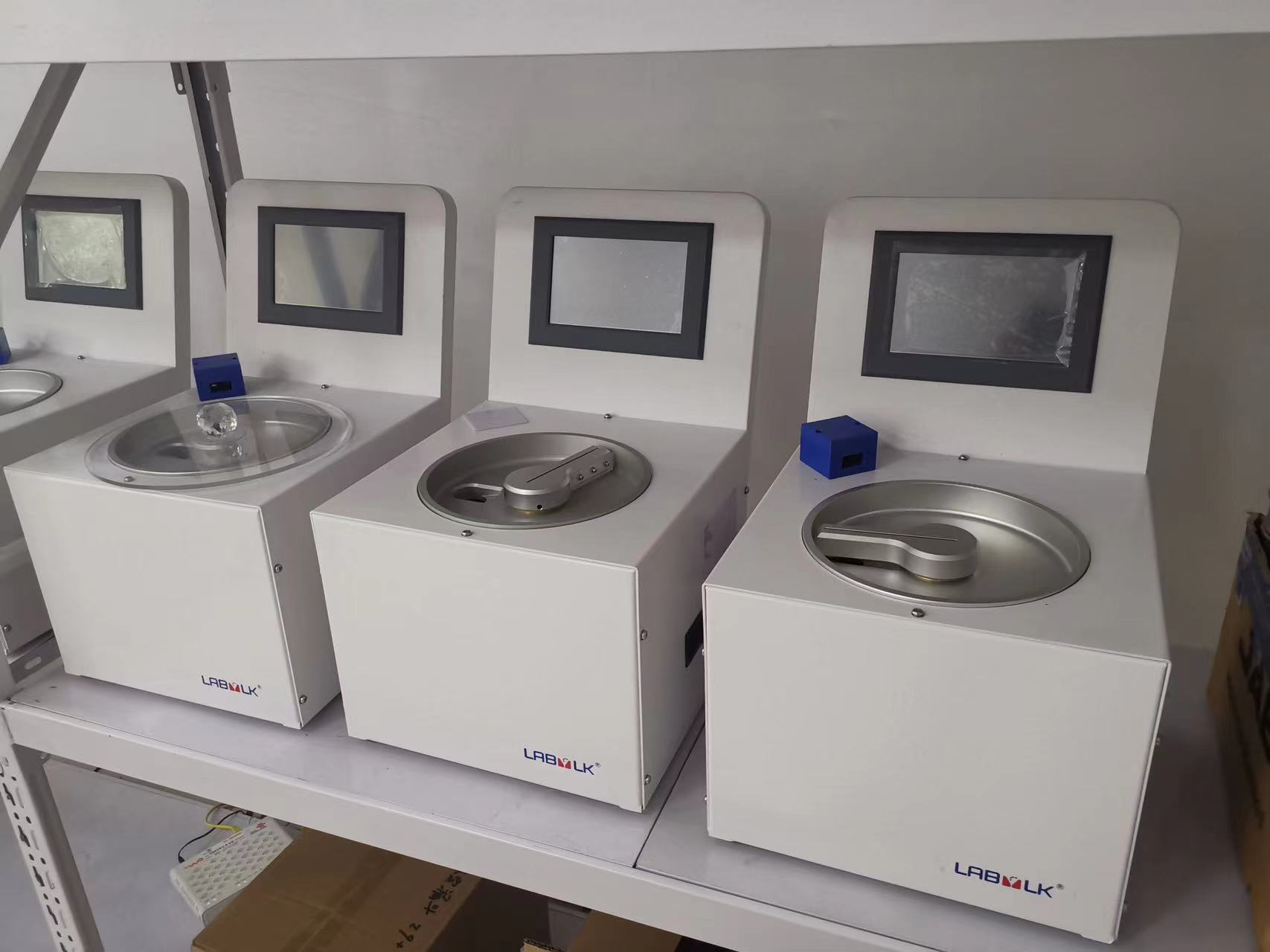

High-end users usually choose automatic sieve. The automatic sieve can achieve the full automatic sieving of powder particles. The gap between imported automatic sieve and domestic sieve is obviously narrowing. HMKTest HMK-200 Touch Screen Intelligent Air Jet Sieve is a universal automatic sieve. It uses air jet sieving as the power, to automatically sieve the powder. The results are automatically displayed. It represents the most advanced sieving technology, and has been widely used in various powder industry.

AIR-200 micron air jet sieve can do air jet sieving with an accessory HMK-10A Air Jet Sieve Cyclone Sample Collector to collect the fines, HMK-10A works with efficiency as accurate as 99.99%. Air jet sieve cover contributes to a simple and intuitive operation. AIR-200 air jet sieve uses a vacuum cleaner to generate negative pressure under a lab test sieve and the particles are effectively separated by strong jet of air. The diameter of the sieving tank is 200 mm(8″) designed for 200 mm standard test sieve. Smaller test sieves are also workable with AIR-200 air jet sieve sizes by a customized tank.

In addition to sieving normal samples, AIR-200 suits powdered materials that require particular dispersion and disagglomeration operations. AIR-200 air jet sieve is an effective analysis sieving machine working on the same principle of Alpine Air Jet Sieve. AIR-200 is in fact a micron air jet sieve, it’s working range is micron range 15 mirometer up to 5,000 micrometer.

-Compliance grade is supplied with basic documentation — a certificate of conformance.

-Inspection grade is supplied with documentation having limited inspection data.

-Calibration grade is supplied with documentation showing more detailed inspection data.

Air Jet Sieve https://www.isizer.com/air-jet-sieve-analysis-by-micron-air-jet-sieve-shaker/
