AIR-200 Economic Air Jet Sieve

AIR JET SIEVE

AIR-200 Air Jet Sieve is an air jet sieve developed by HMKTest and divided into Economic model and Standard model. It consists of touch panel, microprocessor controller, stepping motor, negative pressure sensor and patented nozzle etc. In addition to meeting basic requirement on the air jet sieving, AIR-200 Economic Air Jet Sieve features touch panel, testing pressure real time monitor and control, time, rotating speed, connectable to electric balance, auto calculation of test results. It can also work with optional sample collector to collect undersize sample for further analysis.

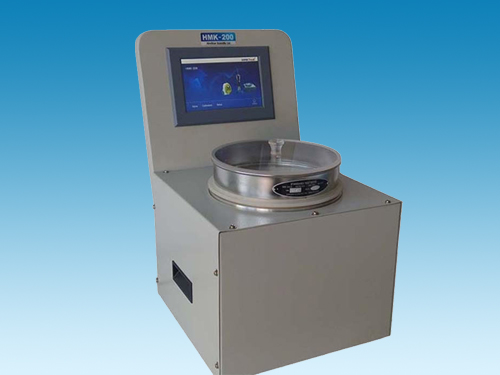

AIR-200 Economic Air Jet Sieve by HMKTest

AIR-200 Air Jet Sieve︱Alpine Micron Air Jet Sieve Principle

SPECIFICATIONS

• Touch panel: LCD 7 inches
• Stepping motor precision: 1.8°
• Negative pressure sensor range: 0-10 Kpa
• Negative pressure sensor precision: 002 KPa
• Timing range: 0-99999 min 59 sec
• Nozzle rotating speed: 0-35 rpm adjustable
• Work with sieve: 200/75 mm
• Nozzle gap: 2 mm
• Size range: 5-5,000 um
• Max loading: 2000 g
• Size & measurement: W 35 x D35 x H58 cm
• Power: 1 phase/1A/220V/110V/50/60Hz/70W
• Weight: 14.8 Kgs

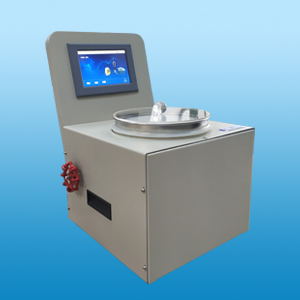

HMK-200-4-air-jet-sieve

FUNCTIONS

• All basic functions *
• Advanced operating system intelligently controls complete testing on a 7 inch LCD touch panel
• Accurate negative pressure sensor, real time show current pressure being used
• Test time 1 touch choice, user’s requirement can be set all the time
• Rotating speed 1 touch choice, user’s requirement can be set all the time
• Connect to electric balance by RS-232 cable, host and electric balance communicates real time
• Automatically calculate results for review
• World leading open mesh function makes for sieving even finer particles by cleaning sieving cloth timely, on time and real time

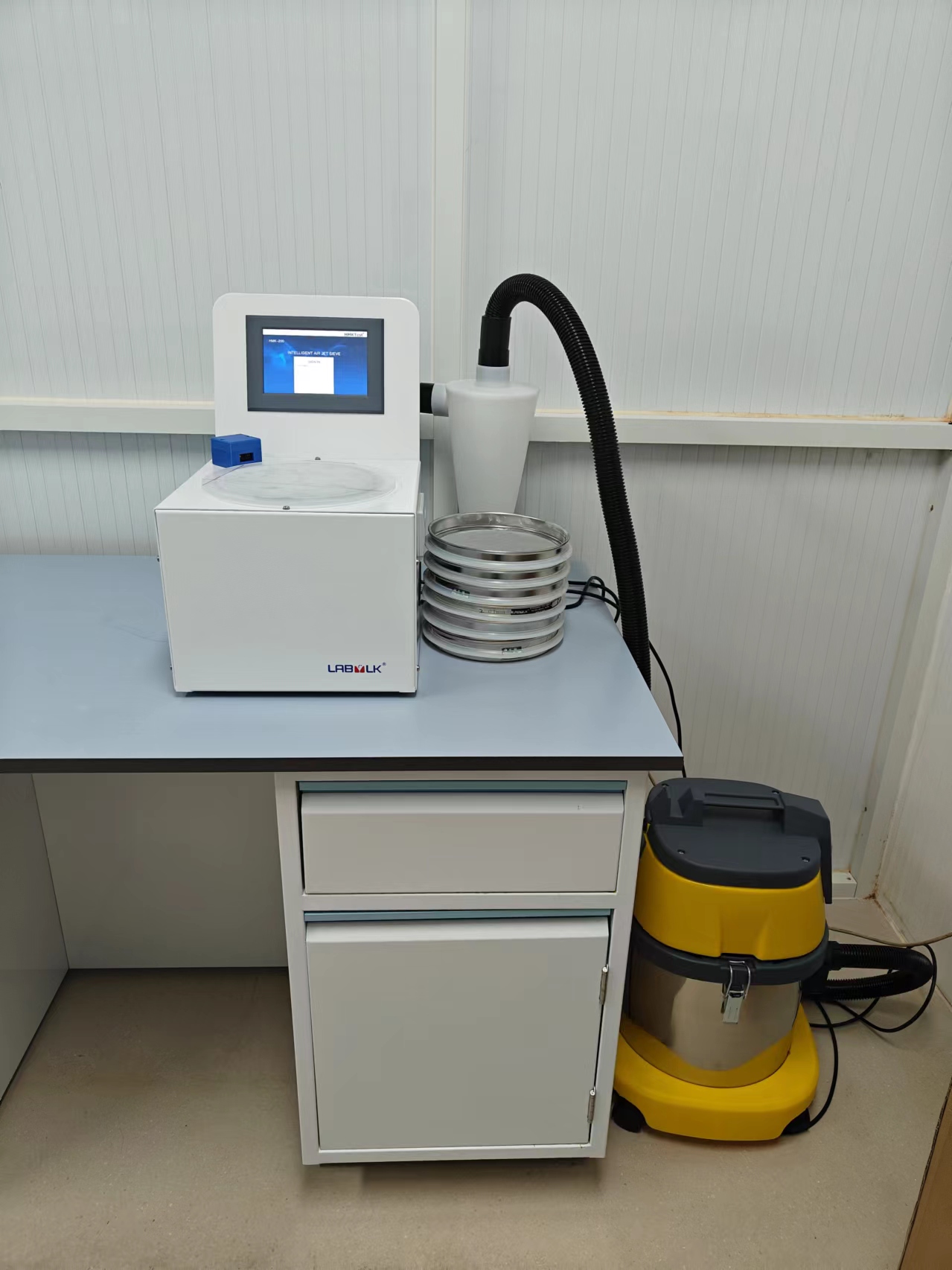

• Sample collector automatically collects undersize sample and save them to glass sample bottle up to 99.99%
